ALL-IN-ONE BREACHING TRAINING DOOR

With the TD8040 breaching training door, you are not limited to train a single type of entry. This all in one breaching training door allows for mechanical, hydraulic, shot gun and explosive breaches to be performed.

This innovative training door does not require consumables so that continuous training operations can proceed without the high cost of replaceable inserts. Our revolutionary dual stage latch mechanism can be reset in seconds maximizing training time. Door can be configured for free-standing portable sites, built-in permanent installations and even adjustable breach resistance. A burglar door or exothermic gate can be added to the door for realistic multi-breach entries. On-site installation service is available.

All-in-One Breaching Training Door Datasheet

SKU: TD8040 Category: Tags: ,

Description

Breaching Training Door in action:

Simply the best breaching training door available!

This innovative, multi-use breaching training door allows for continual forced entry training without the downtime and cost of consumables found on other doors. No replacement pins or parts! Internal spring pack provides adjustable, realistic resistance while door is being forced open. Training door is re-set in seconds. New progressive latch design allows for cumulative, lower energy hits to get through door.

Forced entry methods possible:

  • Battering Ram
  • Hydraulic door pushing
  • Explosive (Push or linear charge)
  • Sledge Hammer
  • Hydraulic jamb spread
  • Burglar Door (Pry open or cut)
  • Pry Bar (Outward)
  • Ballistic (Shot Gun)
  • Fire version (Hyd spreader)

Specifications:

  • Frame dimensions: 80” tall x 40” wide x 4” thick
  • Door dimensions: 77” tall x 30” wide x 1.5” thick
  • Impact plate: 14” x 24” x .50”
  • Weight: 380 lbs.
  • Coating: Flat black powder coating
  • Hinge: 1.0” dia x 4” long barrel pin style (Qty 2)
  • Free standing or Built-in versions available
  • TD8040

Training door ordering Information

DOOR PART NUMBERS
Free-standing version TD8040-FS
Built-in version TD8040-BI

BREACH-RELATED OPTIONS

Linear Charge-Hinge – LCH – 6″ top to bottom strike plate on hinge side of door

Fire – FI – Hydraulic spreader use on latch side

Linear Charge-Latch – LCL – 6″ top to bottom strike plate on latch side of door

Adjustable Breach – AB – Change resistance to open door

Linear Charge-2 – LC2 – 6″ top to bottom strike plate on both sides of door

ADDITIONAL DOOR OPTIONS
Burgular Door – BD – Pry open burglar door
Burgular Door Cut – BX – Exothermic or quickcut saw of burglar door (rebar inserts)
Security Door Pull – SDPULL – Security door (Punch and pull)

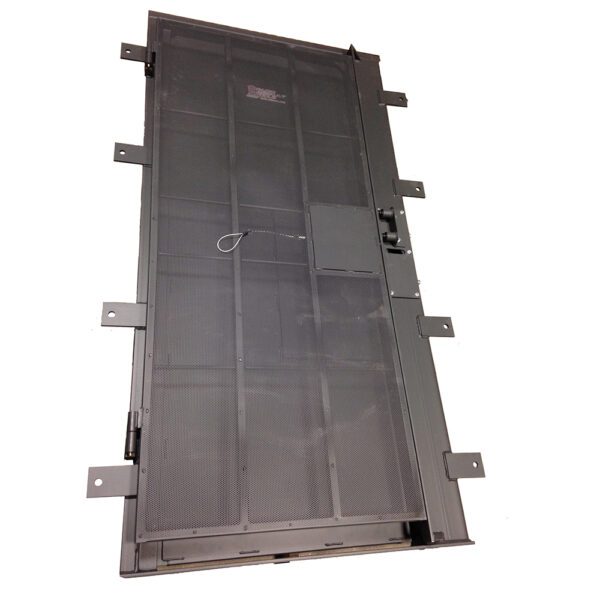

Security Door Pry – SDPRY – Security door (Prybar)
Wheel Kit – WHLS – Removable wheels/axles for transport

See also our Training Window and Training Window with Tactical Assault Ladder offerings.
